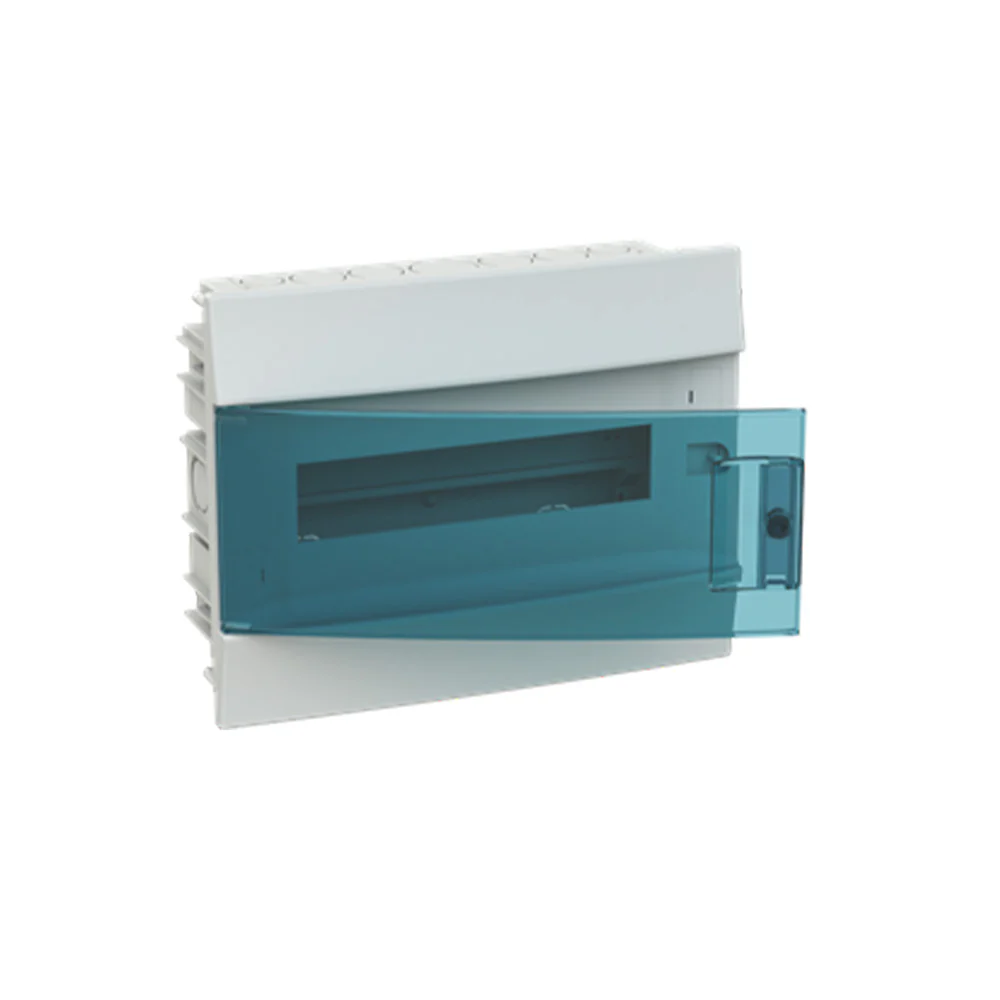

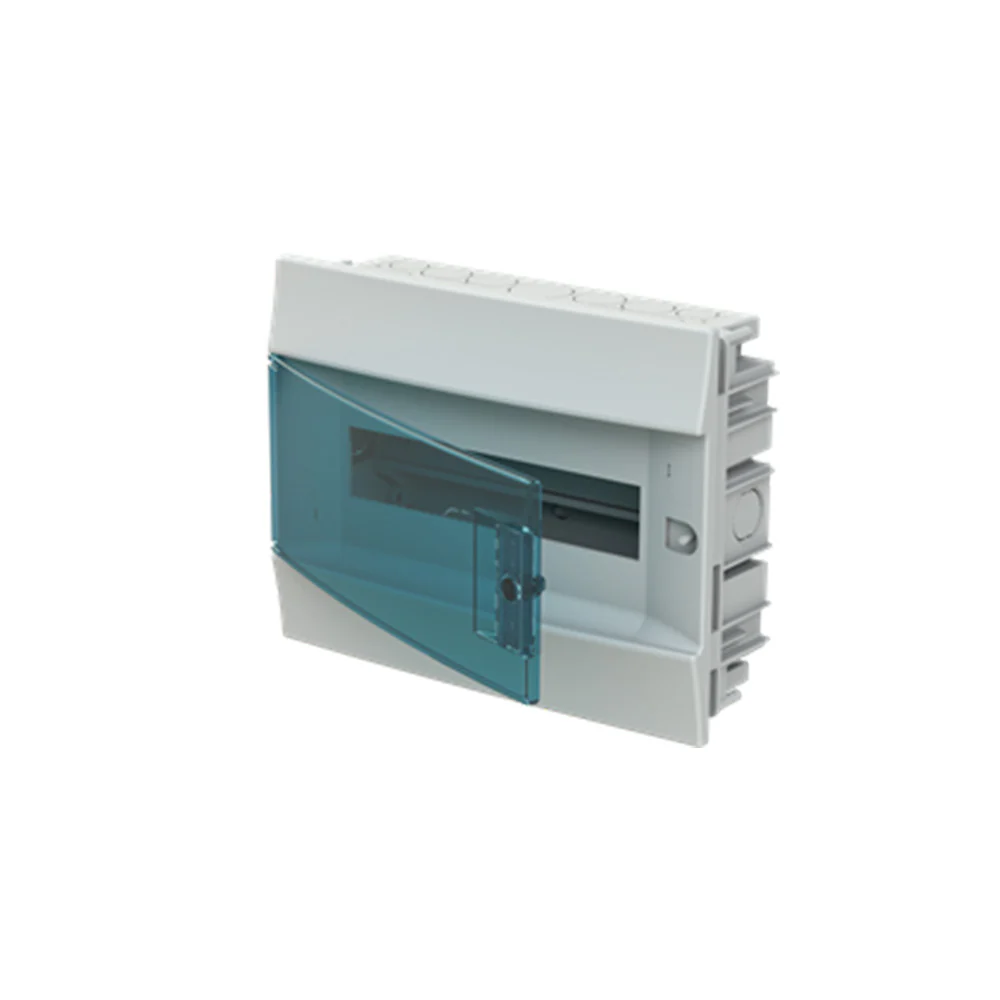

ABB Mistral 41W 650 Wall Transparent Door 24m 32SM

Technical specifications

• General Information:

• • Extended Product Type: 41A12X12A

  • Product ID: 1SLM004101A1203

  • ABB Type Designation: Mistral41F

  • EAN: 8000126142013

  • Catalog Description: Consumer unit MISTRAL41F, Flush mounting, 12 modules, 1 row(s), IP41, Door: Single, Plastic, Transparent, Dimensions: 250 mm x 320 mm x 107 mm

  • Long Description: MISTRAL41F flush transparent door 12M 12SM

---

• Environmental & Protection:

  • Degree of Protection: IP41

  • Protection Class: Isolated (Class II)

---

• Dimensions:

  • Width in Number of Modular Spacings: 12

  • Product Net Width: 320 mm

  • Product Net Height: 250 mm

  • Product Net Depth / Length: 107 mm

  • Product Net Weight: 1.200 kg

  • Built-In Depth ($t_2$): 73 mm

---

• Electrical:

  • Power Loss: 22 W

---

• Design:

  • Enclosure Material: thermoplastic

  • Housing Material: Plastic

  • Door Material: Plastic

  • Transparent Door: Yes

  • Cover Style: with Notch

  • RAL Number: RAL 9016 - Traffic White

  • Color: Traffic white

  • Number of Modules: 12

---

• Technical:

  • Number of Line Terminals: 0

  • Number of Rows: 1

  • Closure Type: Snap Function

  • Configuration Type: Assembled with DIN-rail

  • Cover Plate Type: Door

  • Door Type: Single

  • Door Surface Finishing: Transparent

  • DIN Place Units: 12

  • Terminal Type: Screw Terminals

---

• Material Compliance:

  • RoHS Declaration: EU Declaration of Conformity Mistral 41F with terminals

  • RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019

  • RoHS Date: 20221015

  • REACH Declaration: REACH Regulation Enclosures - ABB S.p.A. Vittuone

  • REACH Information: True - contains substances > 0.1 mass percentage

  • REACH Date: 20240429

  • Conflict Minerals Reporting Template (CMRT): Conflict Minerals Reporting Template

  • WEEE Category: 5. Small Equipment (No External Dimension More Than 50 cm)

  • WEEE B2C / B2B: Business to Consumer

Item no. 1SLM004101A1203
