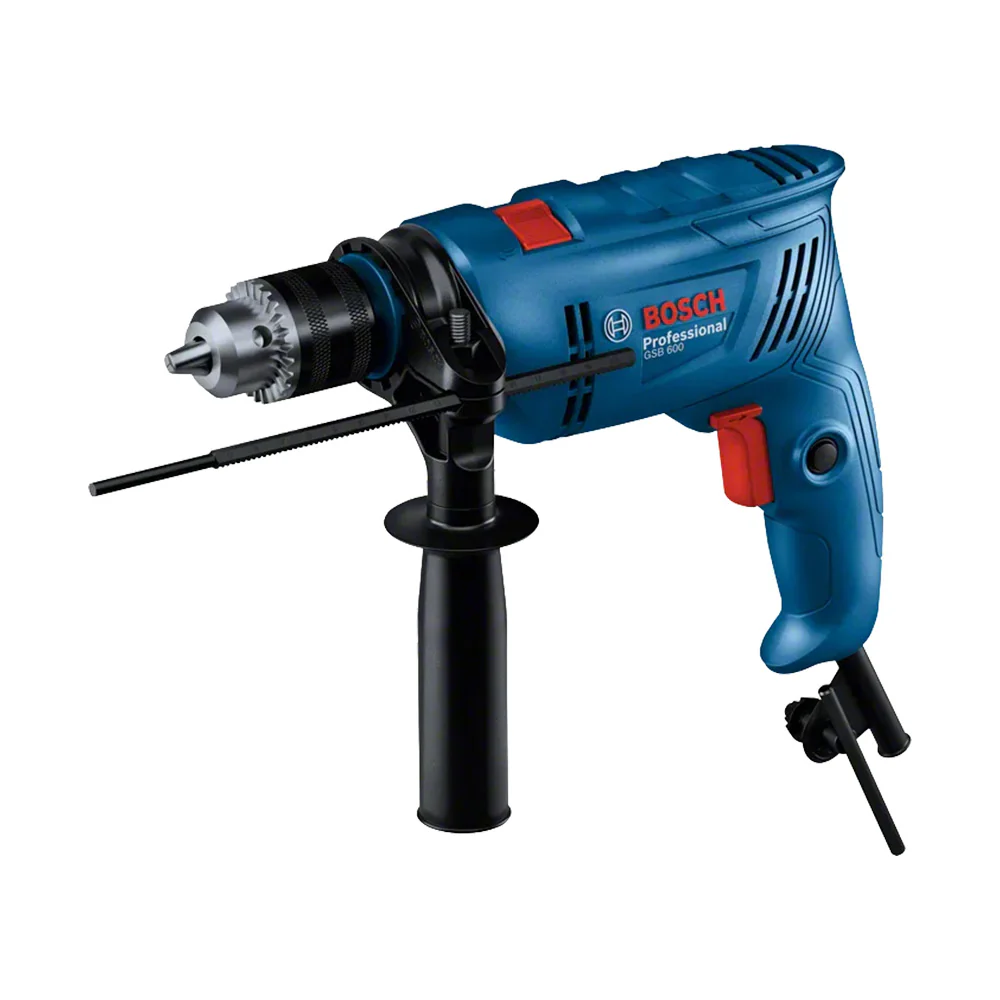

Bosch GSB 600 Percussion Drill 0.601.1A0.3L0

• Better fixation thanks to additional ribs
• Longer usage ensured by improved carbon brush and high-quality design
• More efficiency with the robust and powerful upgraded 600 W motor

TECHNICAL DATA

Additional data

Field	Value
Rated input power	600 W
No-load speed, 1st gear	0 - 3,000 rpm
Power output	600 W
Weight	1.7 kg
Impact rate at no-load speed	0 - 48,000 bpm
Chuck capacity, min./max.	1.5 - 13 mm



Drilling range

Field	Value
Drilling diameter in wood	25 mm
Drilling diameter in concrete	13 mm
Drilling diameter in steel	10 mm
Drilling diameter in masonry	13 mm



Total vibration values (Impact drilling in concrete)

Field	Value
Vibration emission value ah	25.3m/s^2
Uncertainty K	1.5m/s^2



Drilling in metal

Field	Value
Uncertainty K	1.5m/s^2



Impact drilling in concrete

Field	Value
Vibration emission value ah	25.3m/s^2
Uncertainty K	1.5m/s^2
