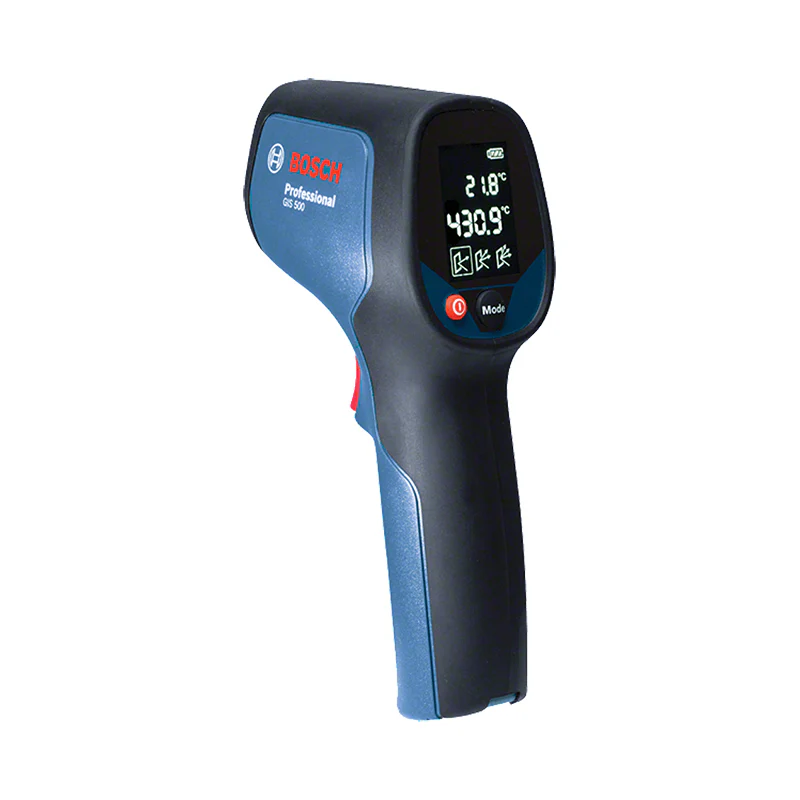

BOSCH GIS 500 Professional Thermo Detector

GIS 500 Professional

Thermo Detector

Press and go. Temperature on hand.

• Simple – Immediate measuring results at one simple press with the selection of 3 emissivity gradings for more precise measurement
• Compact - Easy to carry around thanks to the ergonomic housing design with carrying pouch
• Versatile - Wide temperature measurement range for extreme conditions with press and hold continuous measuring function

Additional data
Measuring accuracy of IR	± 1.8 °C* (*plus use-dependent deviation)
Laser diode	Laser class 2, 635 nm
Power supply and runtime	2 x 1.5V LR6 (AA) batteries 9h
Weight	0.22 kg
Operating temperature	-5 – 50 °C
Storage temperature	-20 – 70 °C
Optics	12:1
Measurement range	Surface temperature, -30 ?C to +500 ?C
Measuring accuracy (typical)	Surface temperature, -30 ? ? t ? -10 ?: ± (1.8 ? + 0.1 x |t| ?), -10 ? < t < 0 ?: ± 2.8 ?, 0 ? ? t < 100 ?: ±1.8 ?, 100 ? ? t ? 500 ?: ± 1.8%
Measuring application	Spot temperature measurement



Item no. 543988
