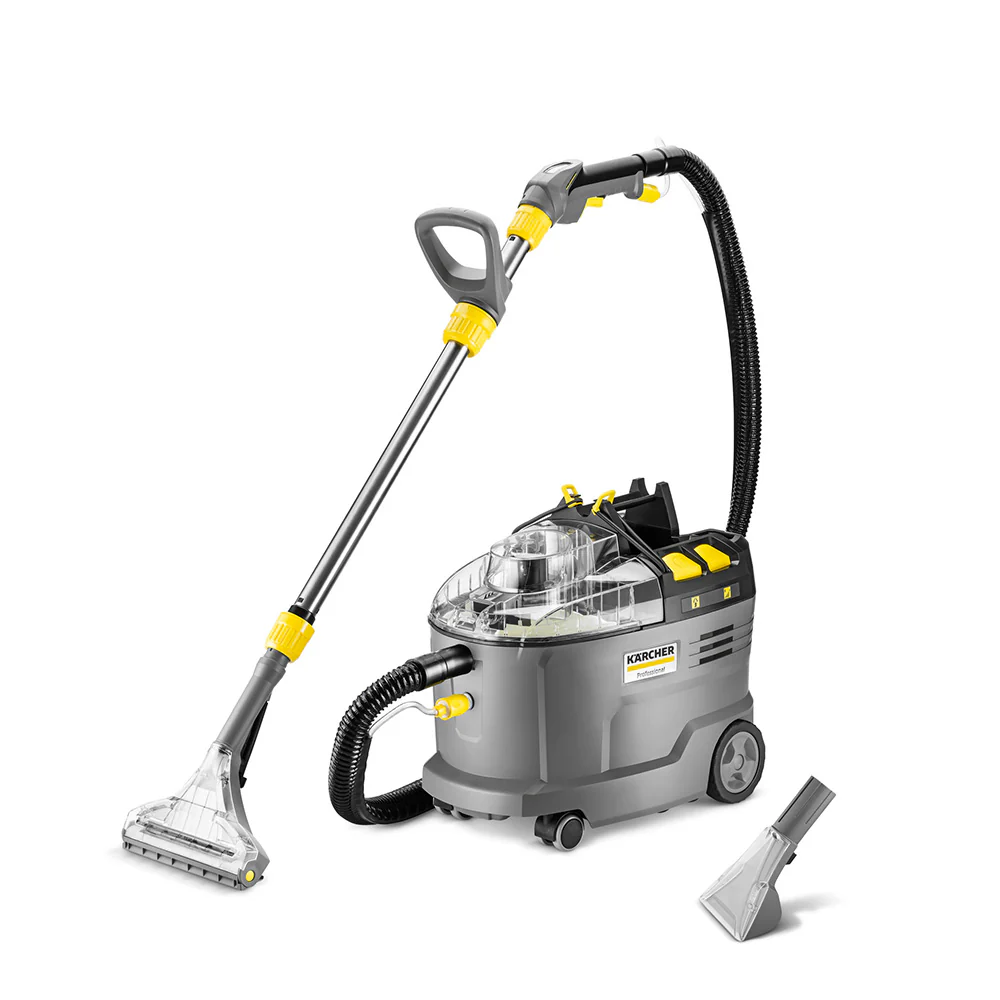

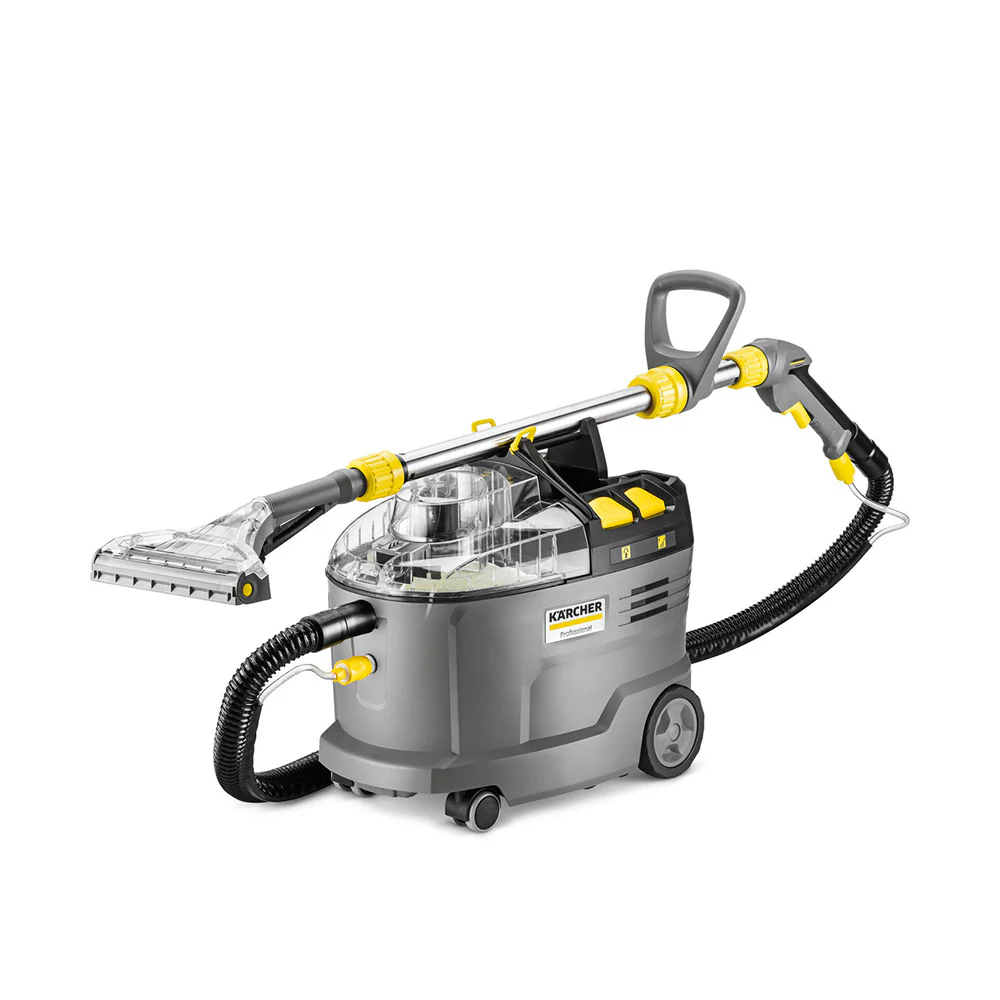

Karcher Puzzi 9/1 Bp Adv *int Spray Extraction Machine 11017
The only one of its kind in the world, offering an extremely robust design and cordless flexibility: Our Puzzi 9/1 Bp Adv Pack cordless spray extraction cleaner. As the only professional-standard battery powered spray extraction machine on the market, this Puzzi never fails to impress with its exceptional performance and maximum freedom of movement when deep-cleaning upholstery, carpets and other textile areas in any industry, be it hotels or hospitality, vehicle valeting or building cleaning operations. Despite its power, this Puzzi is extremely quiet, making it ideal for use in public areas: plus its ergonomically designed handle means it can easily be carried around one-handed. For best cleaning results, the cleaning solution is pressurised and sprayed deep into the textile fibres, then sucked back up together with the loosened dirt. Supplied as standard: Upholstery nozzle, spray vacuum hose, floor nozzle, spray extraction tube, 2-in-1 container for fresh water and dirty water, integrated accessory storage and much more. When ordering this machine version, please bear in mind that the powerful 36 V Kärcher Battery Power+ battery and the corresponding fast charger must be ordered separately.

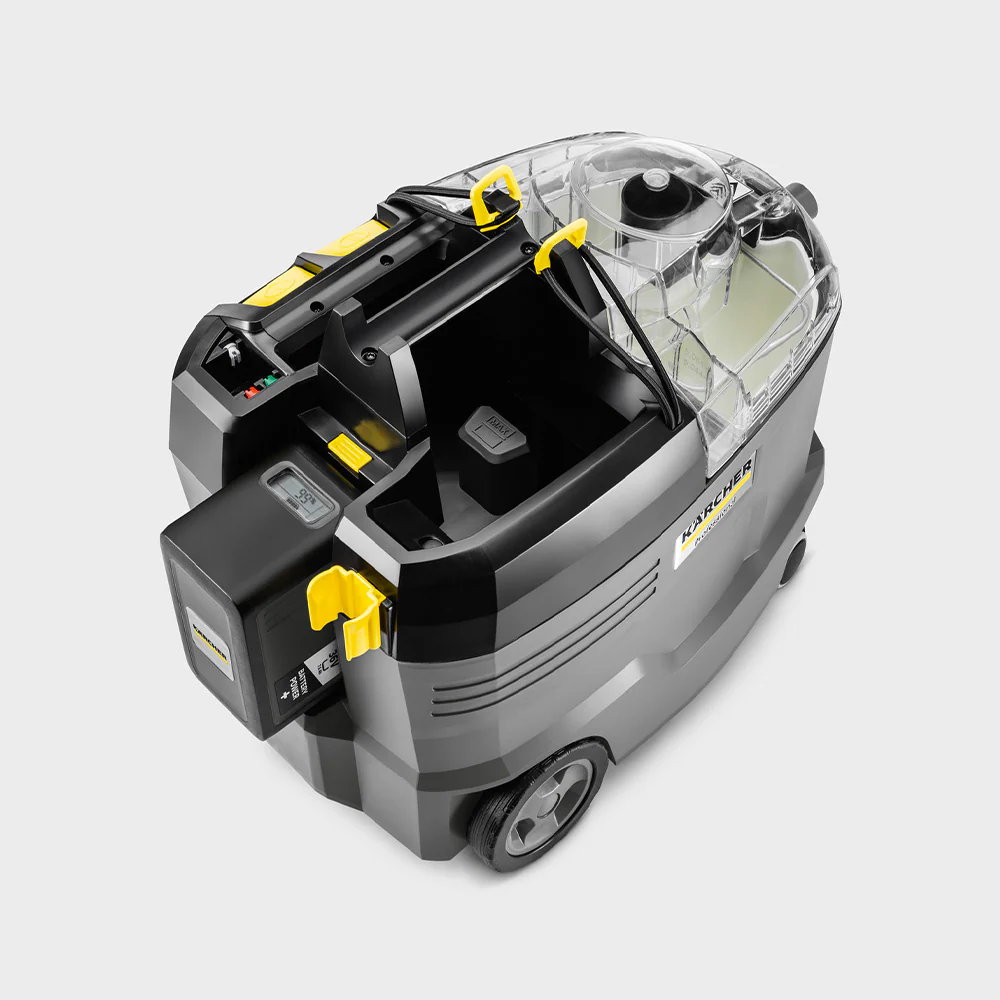

Powerful Kärcher Battery Power+ 36V battery
Cordless freedom of movement. Real Time Technology with LCD battery display: remaining running time, remaining charging time and battery capacity. Compatible with all machines from the 36 V Kärcher Battery Power+ battery platform.
Durable, robust machine design
Long service life ensures high efficiency. Robust and hard-wearing diaphragm pump. Two large buttons operated by hand or foot for convenience.
Comprehensive set of carpet cleaning accessories
Flexible suction lip for optimum suction angle and ultimate drying results. 240 mm wide floor nozzle with integrated spray/suction tube. Ergonomic two-handed grip for extra user comfort.
Technical data
| Battery platform | 36 V battery platform |
| Area performance (m²/h) | 12 - 18 |
| Fresh/dirty water tank (l) | 9 / 7 |
| Air flow (l/s) | 57 |
| Vacuum (kPa) | 15 |
| Spray rate (l/min) | 0,5 |
| Spray pressure (MPa) | 0,16 - 0,22 |
| Turbine capacity (W) | 550 |
| Pump capacity (W) | 4 |
| Rated input power (W) | 575 |
| Sound pressure level (dB(A)) | 70 |
| Nominal size of accessory ( ) | ID 32 |
| Number of batteries required (Piece(s)) | 1 |
| Run time per battery charge (min) | 35 (7,5 Ah) / 27 (6,0 Ah) |
| Battery charging time with quick charger 80% / 100% (min) | 58 / 81 |
| Charging current (A) | 6 |
| Power supply for battery charger (V/Hz) | 100 - 240 / 50 - 60 |
| Colour | anthracite |
| Weight without accessories (kg) | 7,6 |
| Weight incl. packaging (kg) | 13 |
| Dimensions (L × W × H) (mm) | 540 x 332 x 460 |
